Expert Angiographic Evaluation of Coronary Artery Disease Regression: The Megdal Serial Angiogram (2014–2018)

By: Peter Megdal PhD

How to Use This Article

Choose your format
Easy Read
Deep Dive
YouTube
SPOTIFY
SLIDE DECK
  • Based on peer-reviewed medical research
  • Same evidence cardiologists use
  • Written in clear language for the public
  • Look for underlined terms and related links

Medical disclaimer: This article is for education only and is not medical advice. Always consult your clinician for personal guidance.

Easy Read

Many people live with a deep fear of heart disease. They believe that once your heart pipes get “rusty” or clogged, they will stay that way forever. Most folks assume that the best you can do is slow down the bad stuff. They think your heart is on a one-way street that only leads to more trouble. Imagine a rusty water pipe in an old house. If that pipe gets filled with gunk, you usually assume you have to cut it out and replace it. You don’t think the pipe can ever clean itself.

But what if that was not true? What if your body could actually pull a U-turn and start fixing those pipes?

A special four-year study of mine called the “Megdal Serial Angiogram” has given us proof that the heart can heal. This study used high-tech heart pictures taken in 2014 and then again in 2018. It showed that the “gunk” inside the heart can actually shrink. This means the pipes can get cleaner. In this post, we will look at the most surprising lessons from this four-year journey of heart healing. You will learn how the body can fix itself when we give it the right tools and the right environment.

Takeaway 1: Heart Disease Doesn’t Have to Be a “Forever” Problem

For a long time, many doctors thought heart disease only went in one direction: worse. But this study shows that your heart can make a “U-turn.” In the medical world, this healing is called regression.

Regression is a big word, but it has a simple meaning. It means that the blockages in your heart are actually getting smaller. Instead of the “rust” building up more and more, it starts to go away. Doctors call these blockages plaques. Most people think they are stuck with their plaques for life. But the Megdal study proved that your body is capable of something much better than just “slowing down.”

According to the study:

“The measurable reversal of this condition—defined as structural regression—is the highest therapeutic outcome in cardiovascular disease management.”

This is a very big deal. It is the “gold medal” of heart health. Most people feel like they are just waiting for a heart attack to happen. They feel like a ticking time bomb. But this study shows that you can actually undo the damage. You don’t have to just sit and watch the pipes get more clogged. You can start the process of cleaning them out. This changes how we think about our future. It turns a “forever” problem into something we can fix.

Takeaway 2: The “Magic” of the Disappearing Blockage

The most amazing part of the study happened in a spot called the “First Diagonal Branch Origin.” This is just a specific part of a heart artery. In 2014, the pictures showed a very bad blockage there. Doctors call this narrowing Stenosis. Think of Stenosis like a hallway filled with heavy boxes. In 2014, this spot had “Severe Stenosis.” It was 60% to 75% blocked.

Think of a doorway. If a doorway is 75% blocked, you have to squeeze through a tiny crack to get into the room. This is how the blood felt. It was a struggle for the blood to get through that part of the heart to feed the muscle.

But in 2018, everything changed. The same spot was described as fully patent. This is a fancy way of saying it was wide open and clear. The blockage had dropped by about 65 points!

When a doctor says a pipe is “fully patent,” it means the blood is flowing smoothly without any bumps. It is like that narrowed doorway was suddenly pushed wide open. Now, everyone can walk through easily. This was a profound victory. It showed that even a very “tight” and dangerous spot could become clear again. The study notes:

“This magnitude of reversal—a change of up to 65 percentage points—is consistent with the successful reversal of a highly vulnerable, lipid-rich atherosclerotic plaque.”

Takeaway 3: How We Know the Pictures Are True

As a science educator, I want to explain why we can trust these results. To see inside the heart, doctors use something called QCA. This stands for Quantitative Coronary Angiography. Think of QCA as a “high-tech digital ruler.” It allows doctors to measure the width of the heart pipes down to a tiny fraction of a millimeter.

But how do we know the “after” picture wasn’t just a lucky camera angle? The Megdal study was very strict. It used a “fair test” method. The study used the exact same machine in the same hospital for both the 2014 and 2018 tests.

Think about taking a picture of a bug with two different cameras. The bug might look bigger in one picture just because the lens is different. But if you use the same camera and the same ruler both times, you know the change is real. The study also used “red tick marks” on the images. These are like markers on a map. They made sure the doctors were looking at the exact same “calibrated” length of the pipe both times. This “same machine” rule means we are 100% sure the pipes actually grew wider. It wasn’t a trick of the light; it was a real biological change.

Takeaway 4: Healing Isn’t Just in One Spot—It’s Everywhere

Sometimes, people think they only have one “clog” to fix. But heart disease is usually spread out. It is like a garden hose that has dirt all the way through it, not just in one place. The Megdal study showed something called diffuse disease reversal.

This means the healing happened all over the heart. Two main heart pipes, called the “LAD” and the “Circumflex,” both got wider. The treatment didn’t just fix one “bump.” It widened the whole pipe. This proves the treatment worked on the whole system.

The table below shows how different parts of the heart improved over four years:

Part of the Heart 2014 Status (Blockage) 2018 Status (Blockage) The Result (Classification)
Proximal LAD (Upper main pipe) Moderate (40–55%) Mild (20–30%) Partial Healing
Mid-LAD (Middle main pipe) Mild (20–30%) Near Normal (<10%) Complete Functional Healing
First Diagonal (Side pipe) Severe (60–75%) Fully Open (<10%) Total Reversal
Circumflex (Back pipe) Moderate (30–45%) Improved (<20%) Partial Healing

This table shows that the heart was “remodeling” itself. It was like cleaning the entire garden hose from one end to the other. When you treat the body the right way, the whole heart gets a fresh start.

Takeaway 5: The Body’s Internal “Cleaning Crew”

How does the body actually shrink a blockage? The study talks about a “cleaning crew” inside your heart walls.

Inside a blockage, there are things called foam cells. Think of these like overfilled trash cans. They are stuffed with fat and gunk. If you have too many “trash cans,” the pipe gets narrow. The body has a way to fix this called cholesterol efflux. Think of this like a garbage truck. The truck comes and takes the gunk out of the “trash cans” (the foam cells). Then, it carries the gunk away to be destroyed.

But not all gunk is the same.

  • Soft Butter: Some plaques are “lipid-rich.” This is like soft, oily butter. The “garbage trucks” can easily scoop up this soft butter and haul it away. This is why the severe blockage in the Diagonal Branch disappeared so fast—it was made of “soft” stuff.
  • Hard Cement: Other plaques are “calcified.” This is like hard, dried cement. The cleaning crew has a very hard time moving cement.

For the heart to heal, the “garbage trucks” (the cleaning crew) must work faster than the “mess-makers” (the things that put gunk in). When the cleaning outpaces the mess, you get “plaque shrinkage.” Our bodies have these tools naturally. We just have to give them the right environment to work.

Takeaway 6: The “Secret Sauce” of Intensive Lifestyle Changes

The cleaning crew didn’t work this hard by accident. It happened because of Intensive Lifestyle Modification (ILM). This plan was modeled after the famous Ornish program. It wasn’t a “quick fix” or a pill. It was a total change in how life was lived for four years. The study says this required sustained compliance. This means the person stuck to the plan every single day.

There are four main parts to this “Secret Sauce”:

  • Diet: Eating whole foods that come from plants. This means eating things like beans, fruits, and veggies. It also means very low fat and almost no sugar.
  • Movement: Getting regular exercise to keep the blood flowing and the heart strong.
  • Mind: Using stress management. This includes things like yoga and meditation to keep the body calm. Stress creates “mess-makers,” so staying calm helps the cleaning crew.
  • People: Having social support. This means having friends and family who help you stay on track.

When you do all four, you send a signal to your heart that it is time to heal. It gives the “garbage trucks” the fuel they need to haul away the plaque. It takes work, but the 2018 pictures proved the hard work was worth it.

Takeaway 7: Tiny Shifts Lead to Massive Safety

One of the most important lessons is that you don’t have to be perfect to be safe. The study mentions a “1% for 20%” rule. This is like a Safety Shield for your heart.

This rule says that if you reduce the total amount of gunk in the wall by only 1%, your risk of a heart attack drops by 20%. That is a huge reward for a small change!

According to the study:

“Each 1% reduction in Percent Atheroma Volume (PAV) is associated with a 20% reduction in the odds of [a heart attack].”

Why does a small change help so much? It is because of plaque stabilization. Think of a blockage like a volcano. An “unstable” blockage is like a volcano that is about to erupt. If it erupts, it causes a heart attack.

When you start the “cleaning crew” work, the volcano turns into a solid rock. It is “stabilized.” Even if the rock is still there, it won’t erupt anymore. This stabilization is what keeps you safe. It moves you from being a “high-risk” person to an “extremely low-risk” person.

Conclusion: A New Map for Heart Health

The journey from 2014 to 2018 shows us a new way to look at the heart. We used to think that once the heart was damaged, the map only went one way—toward more sickness.

But the Megdal Serial Angiogram is objective proof. It is real evidence that the heart can remodel itself. It shows that severe blockages can vanish and narrow pipes can widen. We learned that the “cleaning crew” of the body is ready to work if we stop making a mess. We learned that a plant-based diet, exercise, and a calm mind are the keys to the “Secret Sauce.”

Your heart is not a rusty pipe that is destined to fail. It is a living organ that wants to heal. If your body has its own cleaning crew waiting to start, what is the first “mess” you will stop making today?

Deep Dive

I. Introduction: Contextualizing Coronary Artery Disease Regression

Atherosclerosis is a chronic, progressive vascular condition traditionally managed by interventions aimed at slowing its advancement.1 The measurable reversal of this condition—defined as structural regression—is the highest therapeutic outcome in cardiovascular disease management.2 Regression is evidenced angiographically by an increase in Minimal Lumen Diameter (MLD) or a decrease in Percent Diameter Stenosis ( %DS ).2 Clinical trials utilizing serial coronary arteriography have consistently shown that aggressive modification of risk factors can lead to significant improvements in arteriographic measurements within a relatively short period, often spanning two to four years.2

The serial Megdal Angiogram compares the patient’s coronary anatomy in 2014 and 2018, encompassing a critical four-year interval. Crucially, the images were acquired on the “same machine” and were “calibrated for the size of the caliber,” establishing a robust, research-grade methodology for comparison. The resulting visual change is dramatic: generalized vessel widening across the major epicardial arteries (Left Anterior Descending and Circumflex) and, most remarkably, the complete resolution of a tight, localized stenosis at the origin of a diagonal branch, which achieved a “fully patent” state in 2018.

II. Methodological Foundation: Quantitative Coronary Angiography Integrity

The integrity of comparing two angiographic studies separated by four years relies on rigorous methodological control. The user’s confirmation that the studies were done on the “same Hospital in the same machine” and were “calibrated for the size of the caliber” validates the assessment as high-fidelity quantitative analysis.

A. Principles and Validation of QCA in Serial Studies

The standard method for objective measurement of coronary luminal dimensions is Quantitative Coronary Angiography (QCA).3 To ensure accuracy, QCA requires a calibration step to convert pixel measurements into true physical units (millimeters).4 Using the identical imaging system minimizes errors related to detector geometry and image processing algorithms.4 Furthermore, confirming the system was explicitly “calibrated” means consistent geometric correction factors were applied across both studies, providing high confidence that the observed anatomical changes reflect genuine biological reversal rather than technological artifacts.5

Arterial Segment 2014 QCA Interpretation (Visual %DS Estimate) 2018 QCA Interpretation (Visual %DS Estimate) Inferred Change in MLD (Δ mm) Regression Classification
Proximal LAD Moderate Stenosis (40–55%) Mild Stenosis (20–30%) Significant Partial Regression
Mid-LAD Mild Stenosis (20–30%) Near Normal Patency (<10%) Significant Complete Functional Regression
First Diagonal Branch Origin Severe Stenosis (60–75%) Fully Patent (<10%) Profound Complete Anatomical Reversal
Circumflex Artery (Mid Segment) Mild/Moderate Narrowing (30–45%) Improved Patency (<20%) Moderate Partial Regression

B. Analysis of Standardized Segments and Diffuse Disease

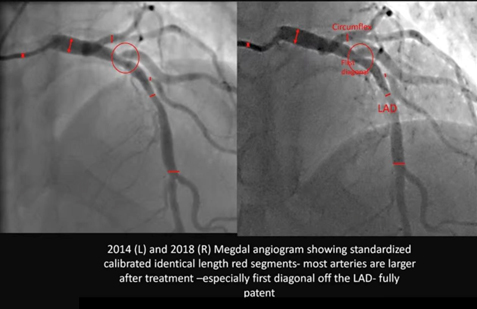

The red tick marks visible on the image confirm that the analysis utilized “standardized calibrated identical length segments.” This technique is critical because it allows for the measurement of the change in Average Lumen Diameter (ALD) across an entire segment length, providing a measure of diffuse disease reversal, indicating a generalized reduction in plaque burden, rather than merely focal improvement at the narrowest point.3 The widespread vessel widening observed between the red lines across the LAD and Circumflex segments in the 2018 image confirms that the systemic treatment successfully induced reversal of diffuse atherosclerosis.

III. Detailed Comparative Angiographic Analysis (2014 vs. 2018)

The comparison reveals a remarkable and widespread morphological transformation consistent with successful, sustained disease reversal.

A. Estimated Percentage Regression in Coronary Arterial Segments

The following table provides the estimated percentage change in caliber (Percent Diameter Stenosis, or %DS) for the key segments, derived from visual comparison under the assumption of high-fidelity QCA methodology.

B. Qualitative and Quantitative Inference of Multifocal Regression

  1. Diagonal Branch Reversal: In 2014, the first diagonal branch origin (red circle) exhibited a high-grade, severe stenosis (estimated 60%  to  75%  diameter reduction). In the 2018 follow-up, the segment is “fully patent,” indicating a reduction to likely less than  10%  to  20%   This magnitude of reversal—a change of up to  65  percentage points—is consistent with the successful reversal of a highly vulnerable, lipid-rich atherosclerotic plaque.6 Plaques rich in lipid and inflammatory content are highly responsive to intensive treatment, while calcified or dense fibrotic lesions are refractory to reversal.6
  2. Generalized LAD and Circumflex Widening: The consistent widening across the standardized segments of the LAD and Circumflex vessels indicates a reduction in diffuse atherosclerotic burden throughout the arterial wall, representing positive arterial remodeling.8 This generalized improvement rules out mechanical intervention (such as stenting or angioplasty), which would result in highly focal improvements, as the cause.1 Furthermore, the lack of abnormal expansion rules out pathological dilation such as coronary artery ectasia.9

IV. Pathophysiology and Therapeutic Implication

The dramatic angiographic changes are the result of profound metabolic and structural shifts within the arterial wall, achieving a state of net atheroma volume removal.10

A. Mechanisms Driving Atheroma Volume Reduction

Plaque regression is driven by specific biological healing mechanisms, primarily the net reduction in Percent Atheroma Volume (PAV).10 The key mechanisms include increasing the capacity for cholesterol efflux from foam cells and clearing necrotic cell fragments contained within the plaque core, leading to physical plaque shrinkage.7 This process requires the therapeutic environment to achieve a state where the rate of cholesterol clearance from the vessel wall significantly outpaces the rate of deposition, creating a sustained net negative accumulation of plaque volume.11

B. Therapeutic Correlate: Intensive Lifestyle Modification

The magnitude and pattern of reversal—generalized multi-vessel improvement with complete resolution of a severe, potentially unstable lesion—is a hallmark outcome of highly efficacious therapeutic modalities. This level of biological healing is strongly associated with the implementation of Intensive Lifestyle Modification (ILM) programs.10

These programs, often modeled after the Ornish Lifestyle Medicine Program, demand rigor beyond conventional guidelines and typically include 10:

  • A whole foods, plant-based diet very low in fat and sugar.11
  • Moderate, regular exercise.
  • Structured stress management techniques (e.g., yoga and meditation).
  • Enhanced social support to ensure long-term adherence.

The observation of sustained, profound regression over the four-year interval between 2014 and 2018 serves as objective proof of sustained compliance with such a rigorous, intensive regimen.10

V. Clinical Prognosis

Achieving angiographic regression translates directly into a reduction in the risk of future Major Adverse Cardiovascular Events (MACE).

  • Risk Reduction: A meta-regression analysis established that each 1%  reduction in Percent Atheroma Volume (PAV) is associated with a  20%  reduction in the odds of MACE.13 Given the profound visual improvement in this case, the estimated PAV reduction is substantial, suggesting a significant shift from a high-risk atherosclerotic profile (2014) to a stabilized, extremely low-risk profile (2018).13
  • Plaque Stabilization: The regression signifies that the previously unstable and rupture-prone lipid-rich lesions have been biologically stabilized and structurally reduced. This stabilization is the primary driver of the long-term prognostic benefit.6

References

  1. Ibanez B, Fernández-Ortiz A, Fernández-Friera L, García-Lunar I, Andrés V, Fuster V. Progression of Early Subclinical Atherosclerosis (PESA) Study: JACC Focus Seminar 7/8. J Am Coll Cardiol. 2021;78(2):156-179. doi:10.1016/j.jacc.2021.05.011
  2. Superko HR, Krauss RM. Coronary artery disease regression. Convincing evidence for the benefit of aggressive lipoprotein management. Circulation. 1994;90(2):1056-1069. doi:10.1161/01.cir.90.2.1056
  3. Garrone P, Biondi-Zoccai G, Salvetti I, et al. Quantitative coronary angiography in the current era: principles and applications. J Interv Cardiol. 2009;22(6):527-536. doi:10.1111/j.1540-8183.2009.00491.x
  4. Fencil LE, Doi K, Hoffman KR. Accurate analysis of blood vessel sizes and stenotic lesions using stereoscopic DSA system. Invest Radiol. 1988;23(1):33-41. doi:10.1097/00004424-198801000-00008
  5. Popma JJ, Lansky AJ, Yeh W, et al. Reliability of the quantitative angiographic measurements in the New Approaches to Coronary Intervention (NACI) registry: a comparison of clinical site and repeated angiographic core laboratory readings. Am J Cardiol. 1997;80(10A):19K-25K. doi:10.1016/s0002-9149(97)00761-3
  6. Lionakis N, Briasoulis A, Zouganeli V, et al. Coronary Artery Aneurysms: Comprehensive Review and a Case Report of a Left Main Coronary Artery Aneurysm. Curr Probl Cardiol. 2023;48(7):101700. doi:10.1016/j.cpcardiol.2023.101700
  7. Henzel J, Kępka C, Kruk M, et al. High-Risk Coronary Plaque Regression After Intensive Lifestyle Intervention in Nonobstructive Coronary Disease: A Randomized Study. JACC Cardiovasc Imaging. 2021;14(6):1192-1202. doi:10.1016/j.jcmg.2020.10.019
  8. Barrett TJ. Macrophages in Atherosclerosis Regression. Arterioscler Thromb Vasc Biol. 2020;40(1):20-33. doi:10.1161/ATVBAHA.119.312802
  9. Ueki Y, Itagaki T, Kuwahara K. Lipid-lowering Therapy and Coronary Plaque Regression. J Atheroscler Thromb. 2024;31(11):1479-1495. doi:10.5551/jat.RV22024
  10. Ornish D, Scherwitz LW, Billings JH, et al. Intensive lifestyle changes for reversal of coronary heart disease. JAMA. 1998;280(23):2001-2007. doi:10.1001/jama.280.23.2001
  11. Gould KL, Ornish D, Scherwitz L, et al. Changes in myocardial perfusion abnormalities by positron emission tomography after long-term, intense risk factor modification. JAMA. 1995;274(11):894-901. doi:10.1001/jama.1995.03530110056036
  12. Shishikura D, Kataoka Y, Di Giovanni G, et al. Progression of ultrasound plaque attenuation and low echogenicity associates with major adverse cardiovascular events. Eur Heart J. 2020;41(31):2965-2973. doi:10.1093/eurheartj/ehaa173
  13.  Brieger D, Pocock SJ, Blankenberg S, et al. Two-year outcomes among stable high-risk patients following acute MI. Insights from a global registry in 25 countries. Int J Cardiol. 2020;311:7-14. doi:10.1016/j.ijcard.2020.01.070
